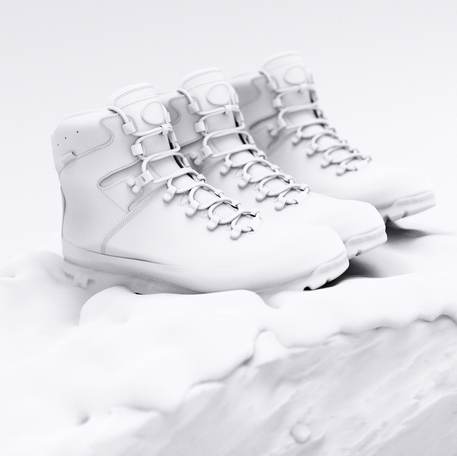

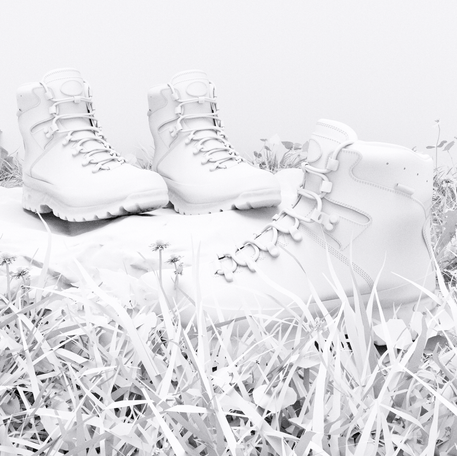

3D RENDER OF BOOTS

MEINDL 3D REBUILD

Reverse engineering project of a Meindl hiking boot. Product Rendering, Animation, 3D Scanning & Modelling.

BRONZE MEDAL

3D REVERSE ENGINEERING

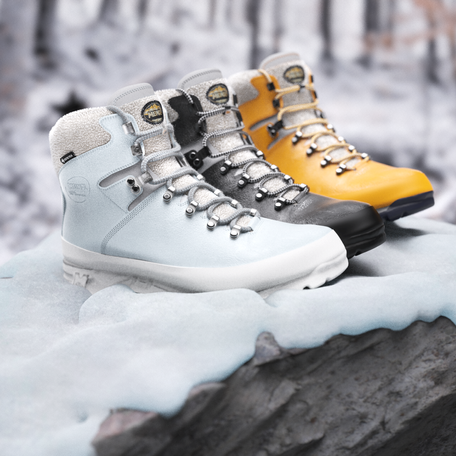

This project was about rebuilding a 3D model from a scan. Taking this Meindl Bhutan MFS boot and using an Artec EVA to scan the shoe. This was then modeled in Rhino using Grasshopper for the stitching. It was then rendered in Keyshot. And won 3rd place in their Colourway Competition in 2023

Below are a few examples of the Braun KF20 with different material executions to show off the internals and the surface finish of the different components. The idea here was to really exemplify certain aspects of the design through material choice.
